And the Winner is: FlyportPRO

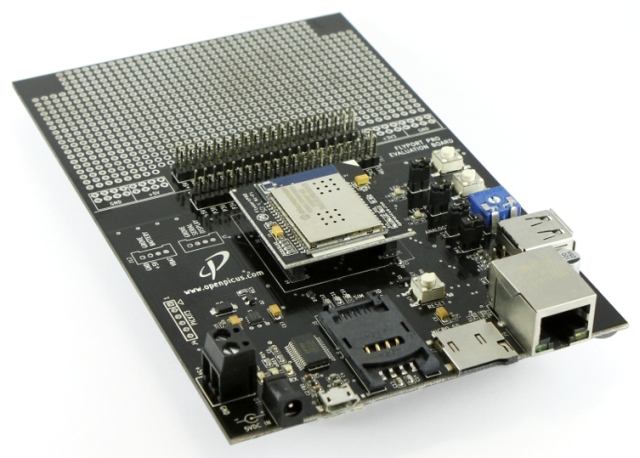

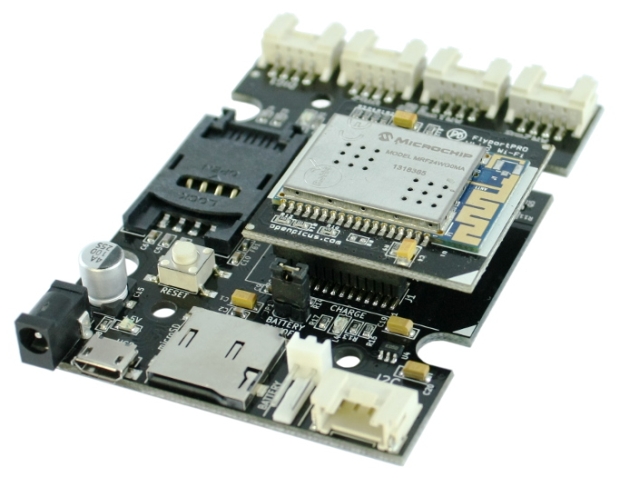

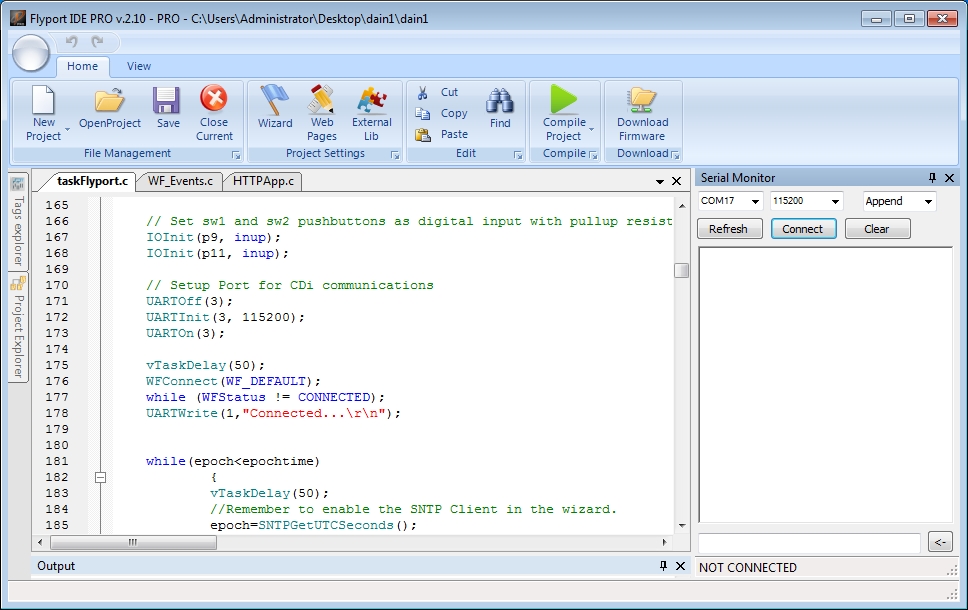

Many IOT systems have been evaluated the last three or so years, 2012 - 2015, resulting in the selection of the FlyportPRO module for all our in-house needs. A prototyping board and a kit board are available at the product website. More info: datasheet, schematic, assembly, you may want to check out FlyportPRO Wiki, and FlyportPRO Website. FlyportPRO has its own IDE development software, but expertise with the C programming language is required.

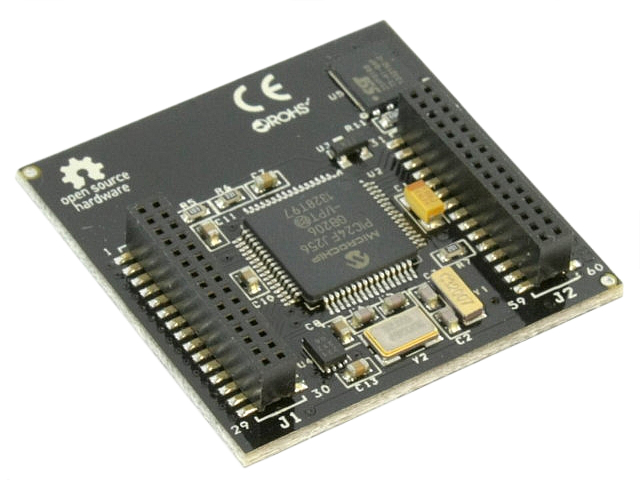

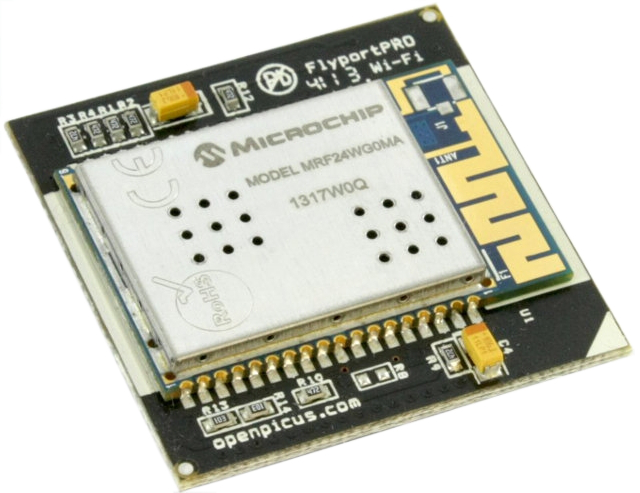

FlyportPRO Internet Of Things Module
FlyportPRO Internet Of Things Module
  • 16 bits, 16 MIPS, PIC 24FJ256GB206 processor
  • 256 Kbyte program memory + 96Kbyte RAM (32K base memory, 64K extended memory)
  • 2 versions: PCB antenna or uFL connector for external antenna
  • 802.11g Wi-Fi certified transceiver (Infrastructure, softAP and Ad hoc mode supported)
  • 16Mbit FLASH onboard (for firmware upgrade and extra space for web server), 64Kbit EEPROM onboard
  • RTC quartz onboard (32.768Khz), Low power - hibernation mode supported, Remappable pinout by software, up to 32 GPIO
  • Up to 10 Analog inputs (10 bit ADC + 2.048V precise voltage reference onboard), up to 9 PWM, up to 4 UART, 2 I2C, 1 SPI
  • Current consumption, Sleep mode 180uA (Wi-Fi and microcontroller OFF), Hibernation 20mA (Wi-Fi OFF)
  • Wi-Fi ON and connected 150mA, Wi-Fi ON and not connected 35mA
  • Very compact - 34*34*9mm, Operating Temperature range -20°C +85°C

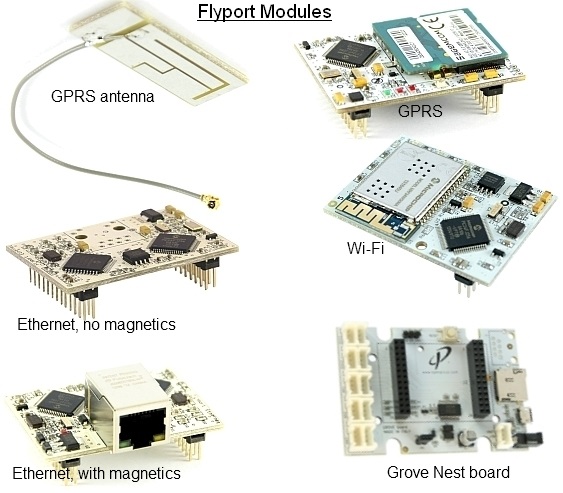

Flyport Wi-Fi, Flyport EtherNet, Flyport GPRS
The Flyport module was the FlyportPRO's divine predecessor but is now discontinued. More info at the Flyport Wiki.
Flyport Wi-Fi, Flyport EtherNet, Flyport GPRS
  • 16 Bit Processor Microchip PIC24FJ256,256K Flash,16K Ram,16Mips@32Mhz
  • Certified Transceiver Wi-Fi 802.11g Microchip MRF24WG0MB
  • 16Mbit Flash memory onboard (for FOTA and web server)
  • Power Supply 5V or 3,3V, integrated LDO
  • Integrated RTC 32,768 Khz quartz onboard
  • Digital I/O up to 18, remappable at Runtime
  • Analog In up to 4, 10bits ADC, Vref=2,048V
  • Communication up to 4 UARTs, SPI, I2C
  • Connector 26 ways, 2 rows, standard 2.54mm male pin header
  • Dimensions 35 x 48 x 15 mm, 11 grams
