PDL/CDi History: P5 Switcher

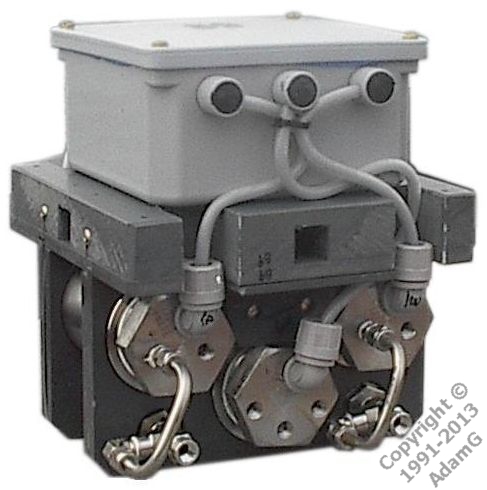

PDL5 Switcher NPT Cylinders
  • It was decided, early in 2006, to continue with P5 development, specifically to design/build gas lifts and plunger lifts.
  • Early units used VR, Variable Reluctance, differentials and hard wiring, initial cylinders were NPT.
  • The work had produced the Switcher software by mid-2007 and after a couple of attempts, quick-connect wiring and machine threaded cylinders with o-rings by 2008.
  • The design of these was retired in 2010 with the arrival of the CDi3.P7 all-digital controller.
  • They are still in use after modifications as CDi.P5.Sw units operating as plunger lifts and intermitters.

    PDL/CDi History Version 2.0: P5.Switcher

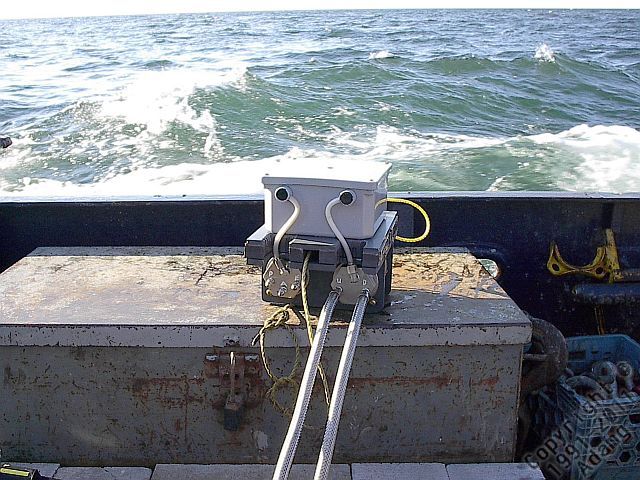

2004. First methanol injector P5.

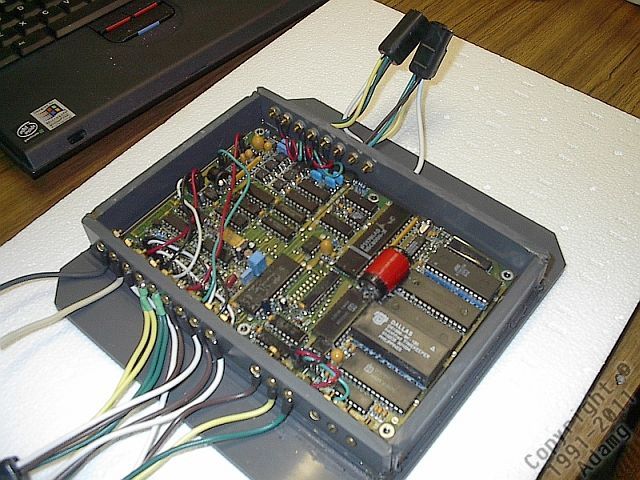

2006. Final wire isolation method.

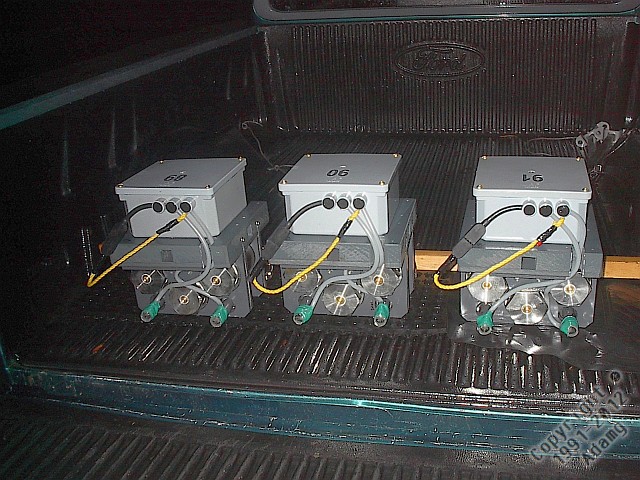

2006. 3-cylinder P5 gas lifts with NPT cylinders.

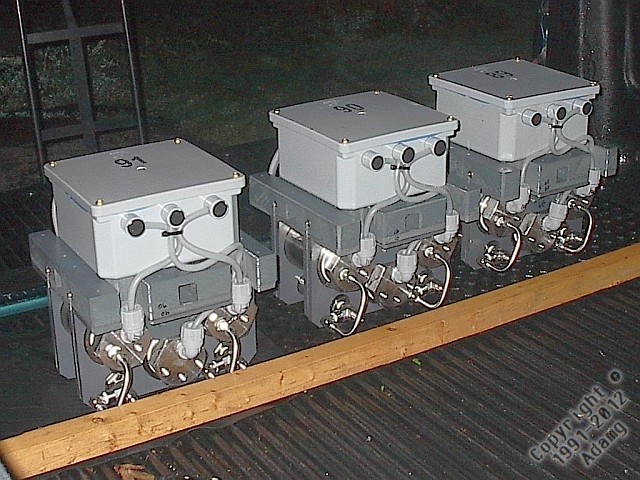

2006. 3-cylinder P5 gas lifts with NPT cylinders.

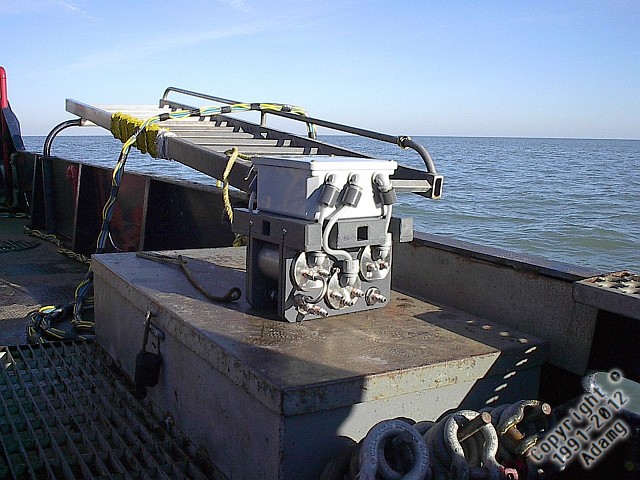

2009. First attempt to implement quick connectors. Cylinders now have machine threads.

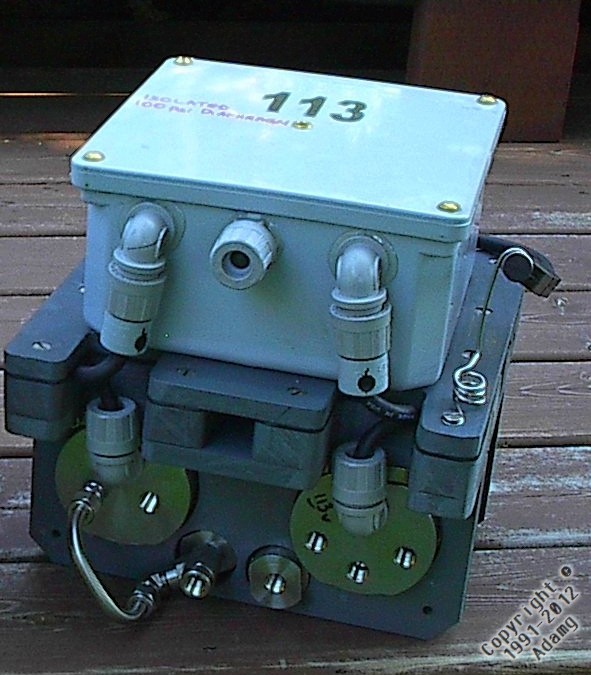

2009. Second and final attempt to implement quick-connectors. P5 switcher with machine cylinders.
