RF Parts
|
|
|
|
RF Parts
|
 |
 |
|
Digikey JR2N1-CL1-1F-ND |
1ft - RPSMA to N male, LMR195 cable from Digi
|
 |
|
|
Digikey JR2N1-CL1-4F-ND |
4ft - RPSMA to N male, LMR195 cable from Digi
|
 |
|
|
Digikey JR2N1-CL1-6F-ND |
6ft - RPSMA to N male, LMR195 cable from Digi
Used these for Mike's Cable |
 |
|
|
Digikey JR2N1-CL1-10F-ND |
10ft - RPSMA to N male, LMR195 cable from Digi
|
 |
|
|
Digikey JR2N1-CL1-20F-ND |
20ft - RPSMA to N male, LMR195 cable from Digi
|
 |
|
|

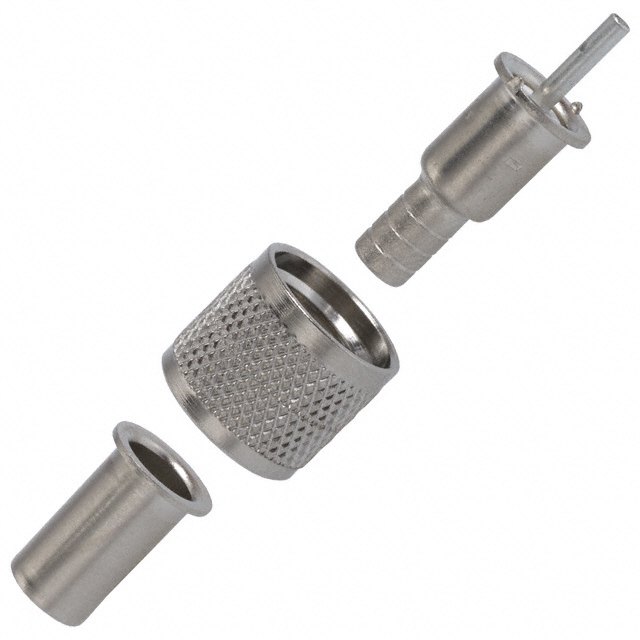

Digikey A24671-ND
Tyco 226600-1 |
Mini UHF connector from Tyco
Used these for Mike's Cable |
 |
|
|
Digikey 367-1064-ND
Emerson 29-4010 |
Mini UHF connector from Emerson Network
|
 |
|
|
Digikey ARFX1025-ND
Amphenol 82-101-RFX |
N' Type adapter Jack-Jack
Bought these for Mike (2) |
|
Antennas
|
 |
|
|
Digikey A09-Y11NF-ND |
ANT YAGI 11.1DBI DIR W/N-FEM CON
This is up the tower in Port Alma - Owned by Adam |
 |
|
|
Digikey A09-F2NF-M-ND |
A09-F2NF-M-ND |
 |
|
|
Digikey A09-F5NF-M-ND |
ANT 5.1DBI 25" BASE STATION W/N
Used this on 3 prototype buoy modems |
|
|
|
Digikey A09-F8NF-M-ND |
ANT 8.1DBI 65" BASE STATION W/N
Did all the offshore testing with this 5.5-footer vertical |
|
Port Alma RF Parts
|
| Fresnel Zone Online Calculator and RF Link Budget Calculator . |
|
Modem
|
 |
|
A
|
Master Modem - Bottom of Tower |
Adam. We have spare from last year |
 |
|
A
|
Modem Power Supply - Office |
Adam. We have spare from last year |
|
Tower
|
 |
|
B
|
Trylon
PDF: Top/Mid Mounting plate
PDF: Lightning rod
|
Trylon, Titan, up to 96 feet height, 45" base |
|
|
|
|
Super Titan |
Trylon, Super Titan, up to 190 feet..Price for 100 feet |
|
Coax
|
 |
|
W
|
Times Microwave LMR-900-DB
Hutton Canada
***L-COM
|
0.9" Coax, 0.266lb/ft, 1.7dB/100ft @900MHz |
 |
|
W
|
Times Microwave EZ-900-NMC-2
Hutton Canada
***L-COM |
Male Connector for LMR-900 |
 |
|
W
|
Times Microwave EZ-900-NFC-2
Hutton Canada
***L-COM |
Female Connector for LMR-900
|
 |
|
W
|
Times Microwave ST-900C
Hutton Canada |
LMR-900 Strip tool |
 |
|
|
Times Microwave LMR-1200-DB
Hutton Canada |
1.2" Coax, 0.448lb/ft, 1.3dB/100ft @ 900MHz |
 |
|
|
Times Microwave LMR-1700-DB
Hutton Canada |
1.7" Coax, 0.736lb/ft, 0.9dB/100ft @ 900MHz |
|
Antennas
|
 |
|
W
|
|
11DBi, OMNI, 11ft long, 9.4lb
Delivery Box: 200lB??
|
 |
|
W
|
|
18DBi, 16.5 degree dish, 4ft across, 27lb
Delivery box: 150lb.??
Up the tower in Morpeth
|
|
Rotator
|
 |
|
W
|
Yaesu G-800DXA
Universal Radio
Rotator Bolt Pattern |
Rotator |
 |
|
W
|
Universal Radio WCR302
Universal Radio WCR304 |
Rotator Control Cable |
 |
|
W
|
Yaesu GS-065
Universal Radio
Bearing Bolt Pattern & Cutout |
Thrust bearing |
 |
|
|
Yaesu GS-680U
Universal Radio |
Thrust bearing |
|
Rochester RF Parts
|
|
 |
|
|
Davis RF

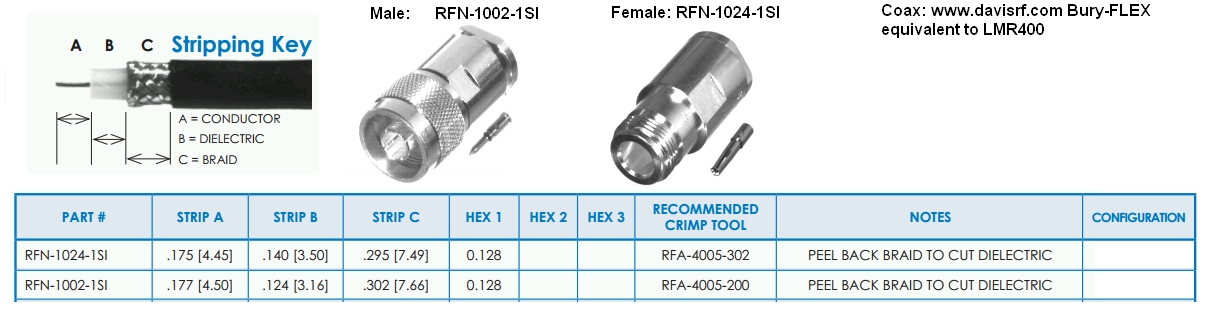

RFN-1002-1SI |
Male Connector for LMR-400, DavisRF Bury-FLEX
http://www.davisrf.com |
|
 |
|
|
Davis RF
RFN-1024-1SI |
Female Connector for LMR-400, DavisRF Bury-FLEX
http://www.davisrf.com |
|
|
|
|
Davis RF
Bury-FLEX
assembly |
Bury-FLEX from Davis RF, equivalent to LMR-400
http://www.davisrf.com |
|
|
