Parts:
NP2W
NuovoPicus v2.0 WiFi Parts, PIC24FJ256GB210, WINC1500
  • The board images below have embedded image maps leading to off-site Digikey parts links for pricing purposes.

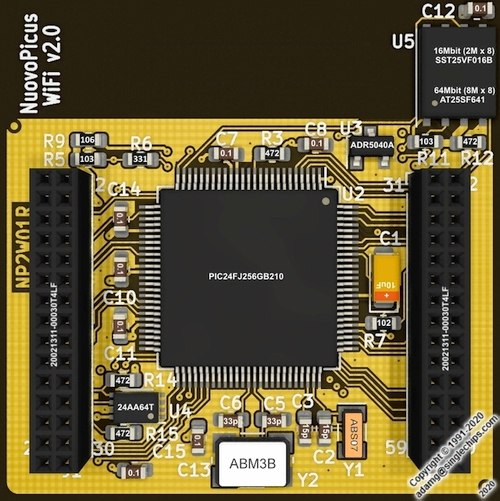

Top Layer Parts
  1. U2, PIC24FJ256GB210-I/PT, MCU 16BIT 256KB FLASH 100TQFP, Digikey
  2. U5, SST25VF016B SPI FLASH 64Mb (8M x 8) 104MHz 8UDFN (5x6), Digikey, Alt
  3. U4, 24AA64T I²C EEPROM 64Kb (8K x 8), 400kHz 900ns 8-DFN (2x3), Digikey
  4. U3, ADR5040A Shunt Voltage Reference ±0.2% 15mA SOT-23-3, Digikey
  5. Y2, ABM3C-32.000MHZ Crystal, Digikey
  6. Y1, ABS07-32.768KHZ Crystal, Digikey
  7. R5, R11, 10K ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  8. R7, 1K ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  9. R6, 330 Ohm ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  10. C5, C6, 33pF ±1% 50V Ceramic Capacitor C0G, NP0 0603, Digikey, Alt
  11. C2, C3, 15pF ±1% 50V Ceramic Capacitor C0G, NP0 0603, Digikey, Alt

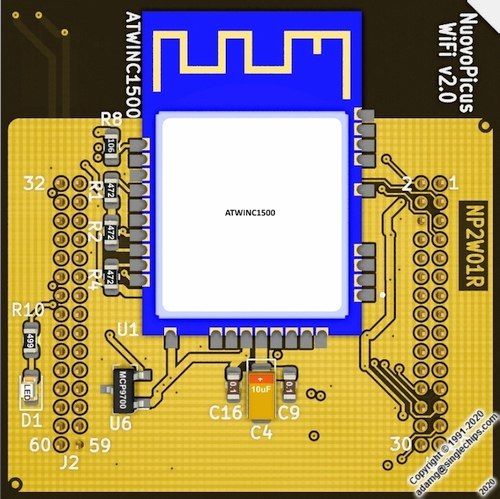

Bottom Layer Parts (If in brackets parts are on top side)
  1. U1, WINC1500, Digikey
  2. U6, MCP9700AT Analogue Temp. Sensor, Digikey
  3. D1, LED RED CLEAR, Blinky Debug LED, Digikey
  4. (C1), C4, 10µF Molded Tantalum Capacitors 10V 1206, Digikey
  5. (C7, C8, C10, C11, C12, C13, C14, C15), C9, C16, .1uF 50V, X7R 0603 Bypass Cap., Digikey
  6. R8, 1 MOhms ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  7. R1,R2, R4, (R3, R12, R14, R15), 4.7K ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  8. R10, 499 Ohm ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  9. (J1, J2), CONN RCPT 30POS 0.05 GOLD PCB, Digikey
