Parts:
VP1W
VP1W - VecchioPicus v1.0 Wi-Fi Parts, PIC24FJ256GB206, MRF24WG0MA
  • PIC24FJ256GB206-I/PT and MRF24WG0MA-I/RM Wi-Fi Module, SPI PIC/MRF interface, standard 16Mbit FLASH (SST25VF016B), optional 64Mbit FLASH (AT25SF641).
  • Four-layer board is 100% hardware and software compatible with the original FlyportPro, the OP IDE and the OP dev board. Pdf schematic.

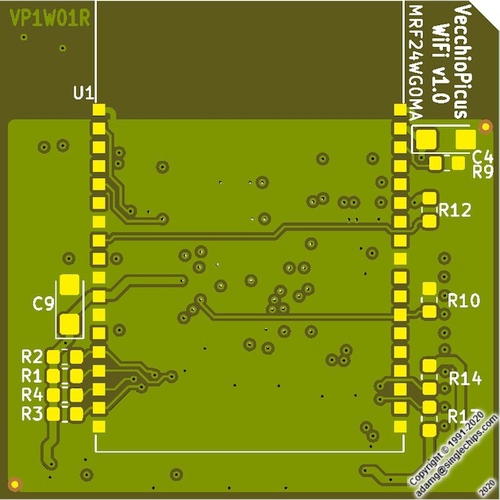

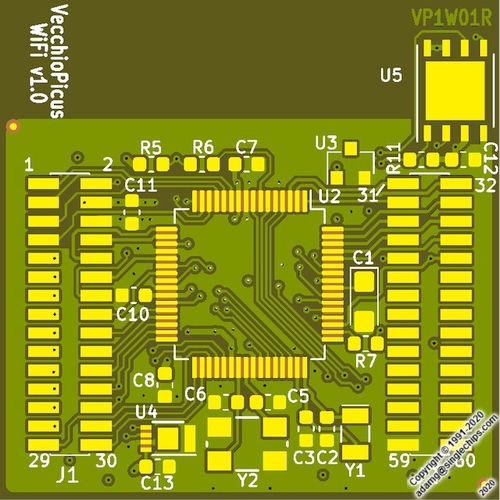

  • Unpopulated 3D image of top layer and bottom layer.
  • The board images below have embedded image maps leading to off-site Digikey parts links for pricing purposes.

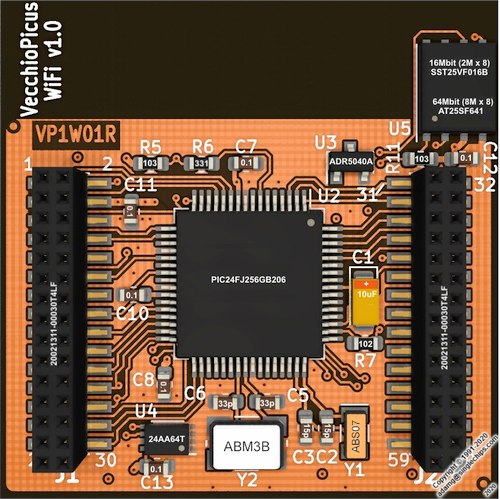

Top Layer Parts (If in brackets parts are on bottom side)
  1. U2, PIC24FJ256GB210-I/PT, MCU 16BIT 256KB FLASH 100TQFP, Digikey
  2. U3, ADR5040A Shunt Voltage Reference ±0.2% 15mA SOT-23-3, Digikey
  3. U4, 24AA64T I²C EEPROM 64Kb (8K x 8), 400kHz 900ns 8-DFN (2x3), Digikey
  4. U5, SST25VF016B SPI FLASH 64Mb (8M x 8) 104MHz 8UDFN (5x6), Digikey, Alt
  5. R5, R11, (R13, R14) 10K ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  6. R6, 330 Ohm ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  7. R7, 1K ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey

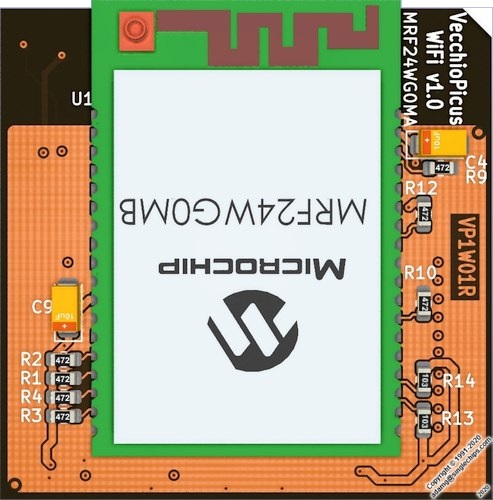

Bottom Layer Parts (If in brackets parts are on top side)
  1. U1, MRF24WG0MA-I/RM, Digikey
  2. C4, C9, (C1) 10µF Molded Tantalum Capacitors 10V 1206, Digikey
  3. R1, R2, R3, R4, R8, R9, R10, 4.7K ±1% 0.1W, 1/10W Chip Resistor 0603, Digikey
  4. (J1, J2), CONN RCPT 30POS 0.05 GOLD SMD, Digikey
  5. (Y2), ABM3C-32.000MHZ Crystal, Digikey
  6. (Y1), ABS07-32.768KHZ Crystal, Digikey
  7. (C5, C6), 33pF ±1% 50V Ceramic Capacitor C0G, NP0 0603, Digikey, Alt
  8. (C2, C3), 15pF ±1% 50V Ceramic Capacitor C0G, NP0 0603, Digikey, Alt
