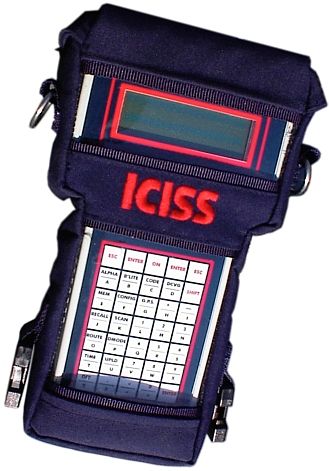

ICISS Corrosion Datalogger

Case

1

Digikey 377-1170-ND
BUD: HH-3420

BOX T ABS 9.33X5.16X1.71 GRAY
"Grabber"

1

Digikey 377-1171-ND
BUD: HH-3440-TS

Tilt Stand for HH3420

1

Digikey 377-1172-ND
BUD: HH-3441-G

Gasket for HH3420
*** NON STOCK ***

Display

1

Digikey 73-1249-ND
Optrex C-51847NFJ-SLW-ADN

TRANSFLECTIVE LCD 20x4
BLACK CHARACTERS ON WHITE BACKGROUND
HIGH-CONTRAST

1

Digikey 73-1251-ND
Optrex C-51847NFQJ-LW-AAN

TRANSMISSIVE LCD 20x4
WHITE CHARACTERS ON BLACK BACKGROUND
NEEDS LED BACKLIGHTING TO BE ON
<

1

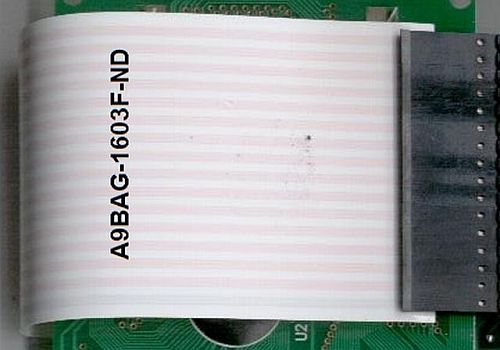

Digikey A9BAG-1603F-ND

Flex Cable

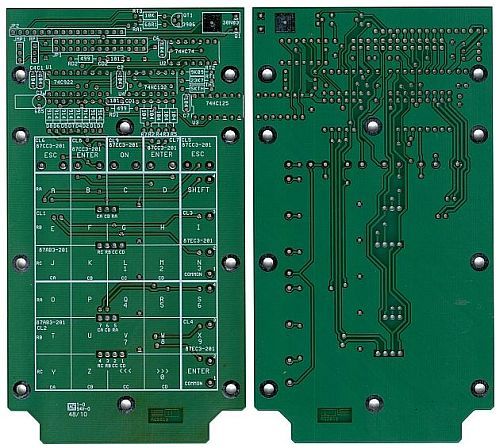

Keyboard
Parts

5

Grayhill 87CC3-201
Future 87CC3-201
Mouser 706-87CC3-201
Newark 81F2089
Allied 87CC3-201
OEM 87CC3-201

KEYPAD, 1 BUTTON

2

Future 87EC3-201
Grayhil 87EC3-201

KEYPAD, 3 BUTTON

2

Future 87AB3-201
Grayhill 87AB3-201

KEYPAD, 12 BUTTON MATRIX

35

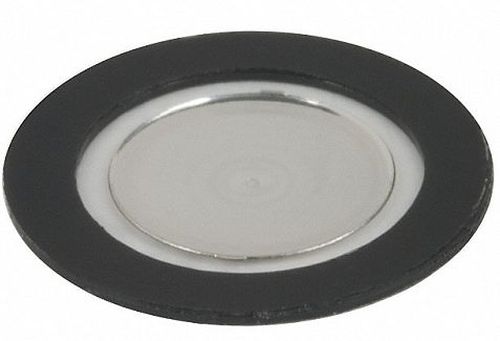

Digikey SW979-ND
Omron B3D-5112

SWITCH DOME ARRAY 5MM SS PCB

1

Digikey 2N3906FS-ND
Fairchild 2N3906BU

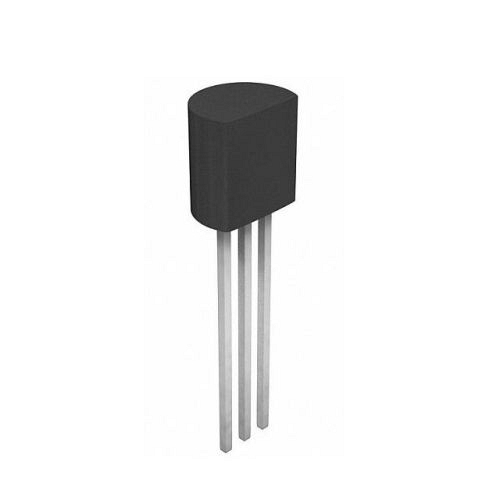

TRANSISTOR PNP SS GP 200MA TO-92

1

Digikey IPD30N03S4L-14CT-ND
Infinion IPD30N03S4L-14

MOSFET N-CH 30V 30A TO252-3

1

Digikey IRFR4105ZPBF-ND
IR IRFR4105ZPBF

MOSFET N-CH 55V 30A TO252-3

1

Digikey MM74C922N-ND
Fairchild MM74C922N

IC ENCODER 16-KEY 18-DIP
*** OBSOLETE ***

Mouser MM74C922N
Fairchild MM74C922N

IC ENCODER 16-KEY 18-DIP
*** OBSOLETE ***

Paladin PDN1188

64 KEY ENCODER
*** Potential Replacement ***

2

Digikey BC1016CT-ND
Vishay K181J15C0GF5TL2

CAP 180PF 50V CERAMIC C0G 5%

2

Digikey 1003PHCT-ND
Vishay A181J15C0GF5TAA

CAP 50V 180PF AXIAL CERAMIC C0G
*** NON STOCK ***

5

Digikey 399-4331-ND
Kemet C322C104M5U5TA

CAP .1UF 50V 20% CER RADIAL

1

Digikey 235-1103-ND
GE Sensing DKA502N5

THERMISTOR NTC 5K OHM 5% TOLER

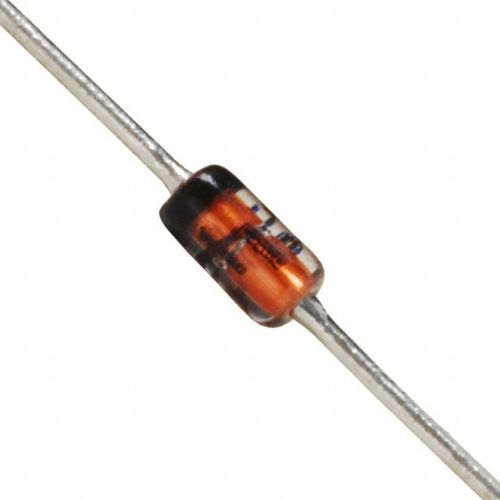

8

Digikey 1N914ACT-ND
Fairchild 1N914ATR

DIODE HI CONDUCTANCE 100V DO-35

2

Digikey 499XBK-ND
Yageo MFR-25FBF-499R

RES 499 OHM 1/4W 1% METAL FILM

1

Digikey 68.1XBK-ND
Yageo MFR-25FBF-68R1

RES 68.1 OHM 1/4W 1% METAL FILM

1

Digikey 10.0KXBK-ND
Yageo MFR-25FBF-10K0

RES 10.0K OHM 1/4W 1% METAL FILM

1

Digikey 9.09XBK-ND
Yageo MFR-25FBF-9K09

RES 9.09K OHM 1/4W 1% METAL FILM

1

Digikey 12.1KXBK-ND
Yageo MFR-25FBF-12K1

RES 12.1K OHM 1/4W 1% METAL FILM

Digikey 100KXBK-ND
Yageo MFR-25FBF-100K

RES 100K OHM 1/4W 1% METAL FILM

Hardware

1

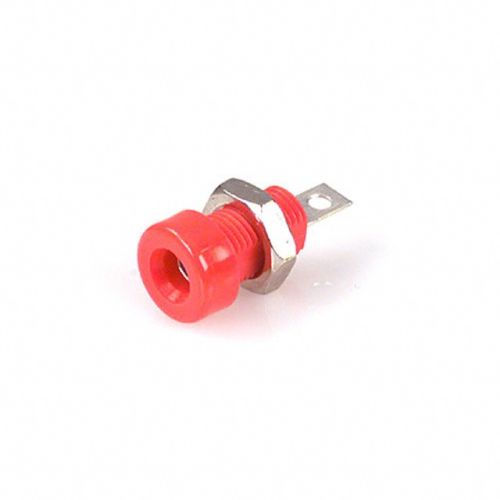

Digikey J151-ND
Emerson 108-0902-001

CONN JACK BANANA INSUL NYLON RED

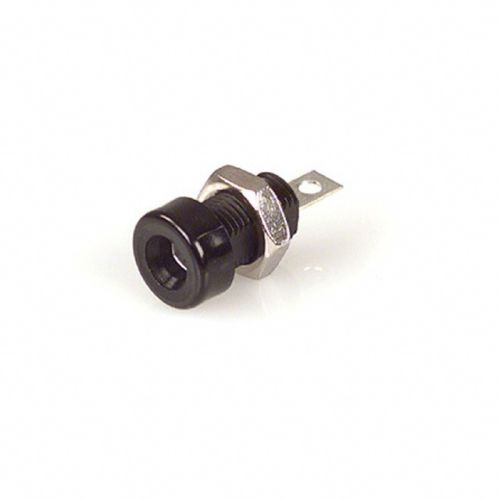

1

Digikey J152-ND
Emerson 108-0903-001

CONN JACK BANANA INSUL NYLON BLACK

1

Digikey J153-ND
Emerson 108-0904-001

CONN JACK BANANA INSUL NYLON GREEN

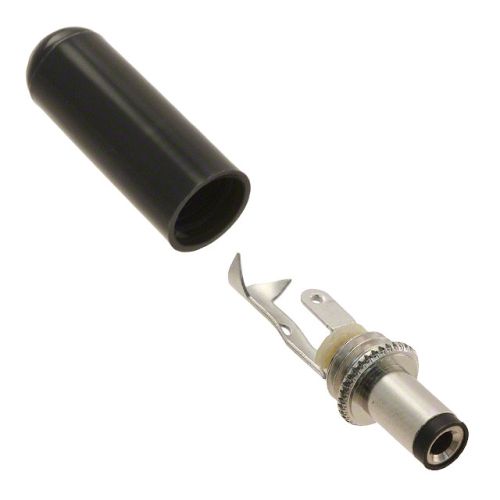

1

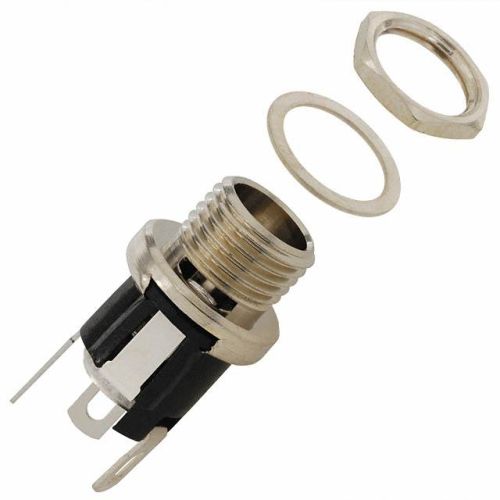

Digikey SC1048-ND
Switchcraft: 712A

CONN POWERJACK SOLDER W/HDWR
2.5mm Power Jack

1

Digikey CP-3502MJ-ND
CUI: MJ-3502

CONN AUDIO JACK 3.5MM MONO
"External ENTER on ICISS"

1

Digikey A34006-ND
Tyco 5208006-1

CONN D-SUB PLUG STR 9POS PCB AU

1

Digikey AE09G-300-ND
Assmann AWG28-9/G/300

CABLE 9 COND 300' GRAY RIBBON

1

Digikey ASC10H-ND
Tyco 1658620-1

CONN IDC SOCKET 10POS 15 GOLD

2

Digikey A23452-ND
Tyco 745286-2

CONN LATCH BLOCK FRT DB9-37 2PC

2

Nutty 0030-BHN440

4-40 Brass Hex Nut Box Qty. / 100

2

Nutty 0020-BRMS44012

4-40 X 1/2
Brass Slotted Round Head Machine Screw
Box Qty. / 100

Cable

2

Digikey A23446-ND
Tyco 745779-2

CONN LATCH SPRING DB9-37 2/BAG

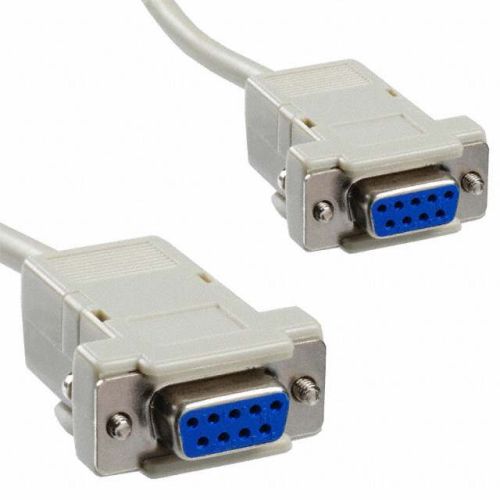

1

Digikey AE9879-ND
Assmann AK143-3-R

ICISS COMM CABLE
NULL MODEM CABLE DB9F TO DB9F

1

Digikey 1109FA-ND
Norcomp 172-009-202R001

CONN DB9 FEMALE SOLDER CUP TIN

1

Digikey A33671-ND
Tyco 5749914-2

CONN BACKSHELL DB9 PLASTIC

Power

1

Digikey T945-P6P-ND
CUI EMS120050-P6P-SZ

Multiplug Transformer
*** OBSOLETE ***

1

1

1

1

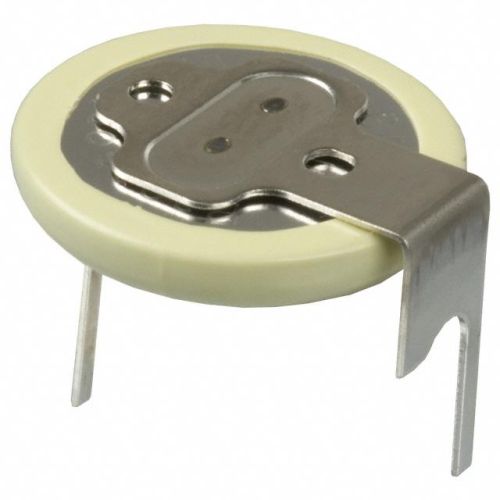

Digikey P191-ND
Panasonic: BR-1225/HCN

Battery Lithium 12.5MM Coin W/Legs

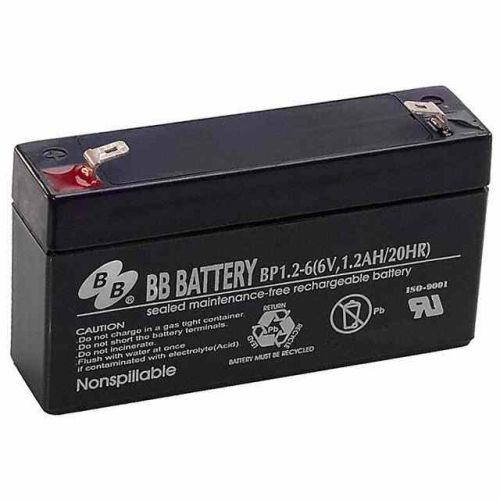

1

Digikey 522-1000-ND
B B Battery BP1.2-6-T1

BATT SEALED LEAD ACID 6V 1.2AH

1

Digikey P128-ND
Panasonic LC-R061R3P

BATT SEALED LEAD ACID 6V 1.3AH

1

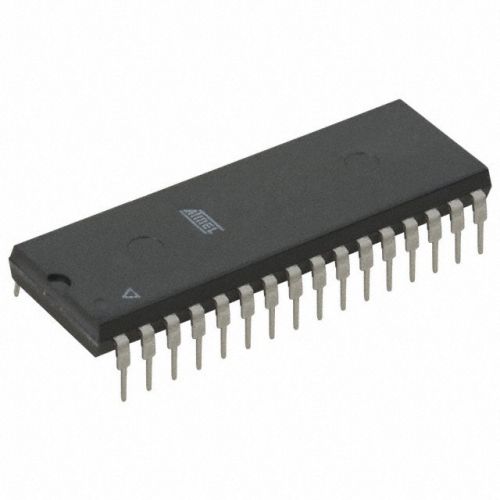

Digikey ED90219-ND
Mill-Max 115-43-632-41-003000

IC SOCKET 32PIN LOW PROFILE .600

1

1

Digikey MAX135CPI+-ND

IC ADC 15BIT W/PRL INTRFC 28-DIP

1

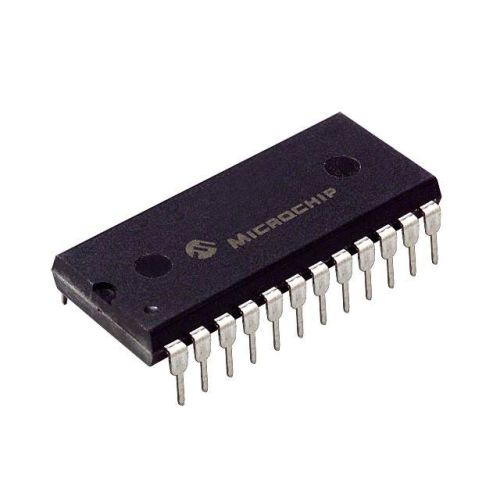

Digikey CP82C54Z-ND

IC TIMER PROG CMOS 8MHZ 24-PDIP

3

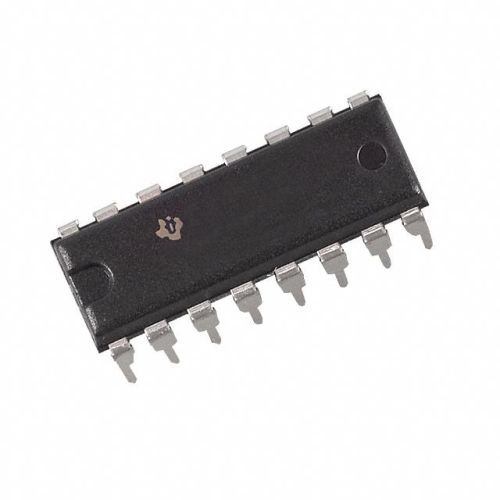

Digikey ADG441BNZ-ND

IC SWITCH QUAD SPST 16DIP

2

Future AS6C4008-55PCN

ALLIANCE

Jameco AS6C4008-55PCN

AS6C4008 Series 4-Mbit (512 K x 8) 3 V 55 ns
CMOS Static RAM - PDIP-32

2

Future AS6C4008-55SIN
ALLIANCE

AS6C4008 Series 4-Mbit (512 K x 8) 3 V 55 ns
CMOS Static RAM - SOP-32

2

Digikey 706-1060-5-ND
ISSI IS61C5128AS-25QLI

IC SRAM 4MBIT 25NS 32SOP

1

Digikey 296-9375-5-ND
TI BQ2204APN

IC SRAM NONVOLTILE CNTRLR 16-DIP
*** NON STOCK ***

1

Digikey 269-4297-ND
Zilog Z8S18010PSG

IC 10MHZ STATIC Z180 64-DIP

1

Digikey 269-4298-ND
Zilog Z8S18010VSG

IC 10MHZ STATIC Z180 68-PLCC

1

Dallas DS1386-8
Dallas DS1386-8

*** OBSOLETE ***

1

Digikey DS1553-85+-ND
Dallas DS1553-85+

IC RTC RAM Y2K 5V 85NS 28-EDIP (8K x 8)

1

Digikey DS1554-70+-ND
Dallas DS1554-70+

IC RTC RAM Y2K 5V 70NS 32-EDIP (32K x 8)

1

Digikey ECS-61-18-4XEN-ND
ECS ECS-61-18-4XEN

CRYSTAL 6.144 MHZ 18PF 49US

1

Digikey 300-8479-ND
Citizen HC49US-6.144MABJ-UB

CRYSTAL 6.144 MHZ 18PF HC49/US

1

Digikey 445-5229-1-ND
TDK PS1240P02CT3

BUZZER PIEZO 4KHZ 12.2MM PC MNT

0

Digikey USF370-9.90M-T-5PPM-ND
Caddock USF370-9.90M-0.01%-5PPM

RESISTOR 9.90M OHM 0.01% 0.75W

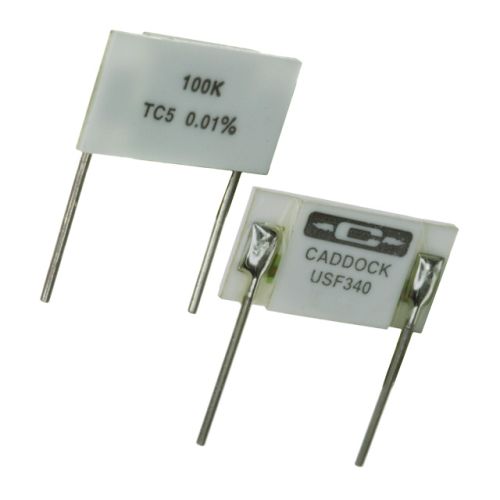

0

Digikey USF340-100K-T-5PPM-ND
Caddock USF340-100K-0.01%-5PPM

RESISTOR 100K OHM 0.01% 0.33W

0

2
