PDL5 Switcher, NPT Cylinders
|
||||||||
 |
||||||||
|
Board
|
 |
0
|

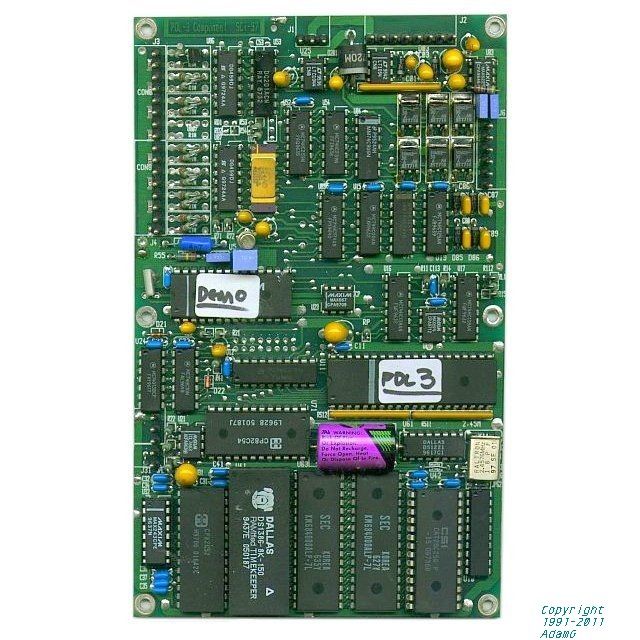

PDL5 Board - Adam
|
*** OBSOLETE ***
|
||||
|
Chips
|
 |
 |
1
|
Digikey MM74C906N-ND
Fairchild MM74C906N |
IC BUFFER HEX OP/DR N-INV 14DIP
*** OBSOLETE *** |
|||
 |
|
1
|
Digikey MAX1822EPA+-ND
Maxim MAX1822EPA+ |
IC POWER SUPPLY HI SIDE 8-DIP
*** NON STOCK *** |
||||
|
|
1
|
Digikey ICL7663ACPA+-ND
Maxim ICL7663ACPA+ |
IC VOLT REG POS LO PWR 8-DIP
*** NON STOCK *** |
||||
|
|
Digikey ICL7663SACPA-ND
Intersil ICL7663SACPA |
IC VREG PROG POS LP CMOS 8-PDIP
*** NON STOCK *** |
|||||
 |
|
Digikey ICL7663SAIBAZA-ND
Intersil ICL7663SAIBAZA |
IC VREG PROG POS LP CMOS 8-SOIC
|
|||||
|
|
Digikey ICL7663ACSA+-ND
Maxim ICL7663ACSA+ |
IC VOLT REG POS LO PWR 8-SOIC
|
|||||
 |
|
1
|
Digikey AD524ADZ-ND
Analog AD524ADZ |
IC AMP INST 1MHZ PREC LN 16CDIP
|
||||
 |
|
1
|
Digikey LM34DZ-ND
National LM34DZ/NOPB |
IC SENSOR TEMP PREC FAHR TO92-3
|
||||
 |
|
1
|
Digikey DG409DJZ-ND
Intersil DG409DJZ |
IC MULTIPLEXER DUAL 4X1 16DIP
|
||||
|
|
Digikey ADG409BNZ-ND
Analog Devices ADG409BNZ |
IC MULTIPLEXER DUAL 4X1 16DIP
|
|||||
|
|
Digikey ADG509AKNZ-ND
Analog Devices ADG509AKNZ |
IC MULTIPLEXER DUAL 4X1 16DIP
|
|||||
|
|
1
|
Digikey 2N3906FS-ND
Fairchild 2N3906BU |
TRANSISTOR PNP SS GP 200MA TO-92
|
||||
 |
|
1
|
Digikey IPD30N03S4L-14CT-ND
Infinion IPD30N03S4L-14 |
MOSFET N-CH 30V 30A TO252-3
|
||||
 |
|
Digikey IRFR4105ZPBF-ND
IR IRFR4105ZPBF |
MOSFET N-CH 55V 30A TO252-3
*** OBSOLETE *** |
|||||
 |
|
1
|
Digikey MM74C922N-ND
Fairchild MM74C922N |
IC ENCODER 16-KEY 18-DIP
*** OBSOLETE *** |
||||
|
|
Mouser MM74C922N
Fairchild MM74C922N |
IC ENCODER 16-KEY 18-DIP
*** OBSOLETE *** |
|||||
|
|
Paladin PDN1188
|
64 KEY ENCODER
*** Potential Replacement *** |
|||||
 |
|
1
|
Digikey MAX135CPI+-ND
|
IC ADC 15BIT W/PRL INTRFC 28-DIP
|
||||
 |
|
1
|
Digikey CP82C54Z-ND
|
IC TIMER PROG CMOS 8MHZ 24-PDIP
|
||||
 |
|
1
|
Digikey ADG441BNZ-ND
|
IC SWITCH QUAD SPST 16DIP
|
||||
 |
|
2
|
AS6C4008 Series 4-Mbit (512 K x 8) 3 V 55 ns
CMOS Static RAM - PDIP-32 |
|||||
 |
|
Future AS6C4008-55SIN
ALLIANCE |
IC SRAM 4MBIT 25NS 32SOP
|
|||||
|
|
Digikey 706-1060-5-ND
ISSI IS61C5128AS-25QLI |
IC SRAM NONVOLTILE CNTRLR 16-DIP
*** NON STOCK *** |
|||||
|
|
1
|
Digikey CP82C52Z-ND
Intersil CP82C52Z |
IC UART/BRG 5V 16MHZ 28-PDIP
|
||||
 |
|
1
|
Digikey AT28C256-15PU-ND
Atmel AT28C256-15PU |
IC EEPROM 256KBIT 150NS 28DIP
|
||||
 |
|
1
|
Digikey 296-9375-5-ND
TI BQ2204APN |
IC SRAM NONVOLTILE CNTRLR 16-DIP
*** NON STOCK *** |
||||
 |
|
1
|
Digikey 269-4297-ND
Zilog Z8S18010PSG |
IC 10MHZ STATIC Z180 64-DIP
|
||||
 |
|
Digikey 269-4298-ND
Zilog Z8S18010VSG |
IC 10MHZ STATIC Z180 68-PLCC
|
|||||
 |
|
1
|
Dallas DS1386-8
Dallas DS1386-8 |
*** OBSOLETE ***
|
||||
 |
|
Digikey DS1553-85+-ND
Dallas DS1553-85+ |
IC RTC RAM Y2K 5V 85NS 28-EDIP (8K x 8)
|
|||||
|
|
Digikey DS1554-70+-ND
Dallas DS1554-70+ |
IC RTC RAM Y2K 5V 70NS 32-EDIP (32K x 8)
|
|||||
 |
|
2
|
Digikey BC1016CT-ND
Vishay K181J15C0GF5TL2 |
CAP 180PF 50V CERAMIC C0G 5%
|
||||
 |
|
2
|
Digikey 1003PHCT-ND
Vishay A181J15C0GF5TAA |
CAP 50V 180PF AXIAL CERAMIC C0G
*** NON STOCK *** |
||||
 |
|
5
|
Digikey 399-4331-ND
Kemet C322C104M5U5TA |
CAP .1UF 50V 20% CER RADIAL
|
||||
 |
|
8
|
Digikey 1N914ACT-ND
Fairchild 1N914ATR |
DIODE HI CONDUCTANCE 100V DO-35
|
||||
 |
|
2
|
Digikey 499XBK-ND
Yageo MFR-25FBF-499R |
RES 499 OHM 1/4W 1% METAL FILM
|
||||
 |
|
1
|
Digikey 68.1XBK-ND
Yageo MFR-25FBF-68R1 |
RES 68.1 OHM 1/4W 1% METAL FILM
|
||||
 |
|
1
|
Digikey 10.0KXBK-ND
Yageo MFR-25FBF-10K0 |
RES 10.0K OHM 1/4W 1% METAL FILM
|
||||
 |
|
1
|
Digikey 9.09XBK-ND
Yageo MFR-25FBF-9K09 |
RES 9.09K OHM 1/4W 1% METAL FILM
|
||||
 |
|
1
|
Digikey 12.1KXBK-ND
Yageo MFR-25FBF-12K1 |
RES 12.1K OHM 1/4W 1% METAL FILM
|
||||
 |
|
5
|
Digikey 100KXBK-ND
Yageo MFR-25FBF-100K |
RES 100K OHM 1/4W 1% METAL FILM
|
||||
|
Hardware
|
 |
1
|
Waytek 37000 | 2 Contact, 12" Loop, GPT Wire | ||||
|
1
|
Waytek 37140 | 2 Contact, 12" Loop, GLX Wire | |||||
 |
1
|
Waytek 37143 | 4 Contact, Square, 12" Loop, GPT Wire | |||||
 |
1
|
Waytek 37132 | 4 Contact, Flat Female, 8", GPT Wire | |||||
 |
1
|
Waytek 37122 | 4 Contact, Flat Male, 8", GPT Wire | |||||
 |
|
1
|

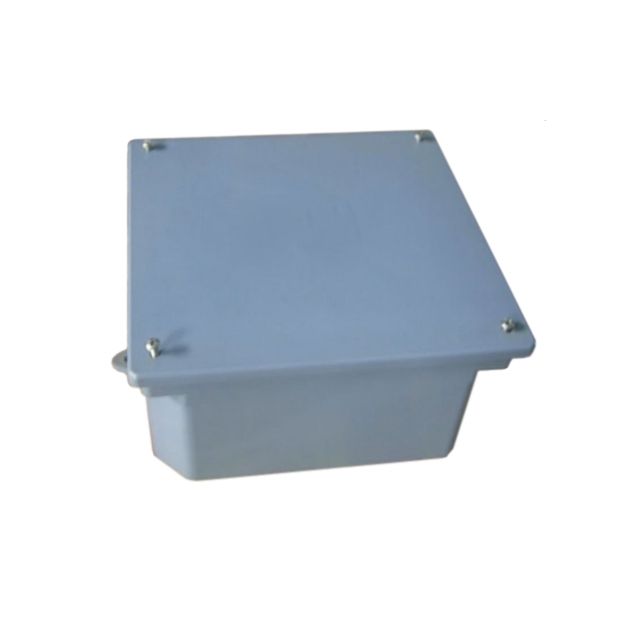

Gerrie Electric JB884 IPEX (Scepter) JB884 |
PVC Junction Box 8"x8"x4" | ||||
 |
|
1
|
Gerrie Electric TA10 IPEX (Scepter) TA10 |
PVC Junction Box 8"x8"x4" | ||||
 |
|
1
|
Digikey SC1048-ND
Switchcraft: 712A |
CONN POWERJACK SOLDER W/HDWR
2.5mm Power Jack |
||||
 |
2
|
Nutty 0030-BHN440
|
4-40 Brass Hex Nut Box Qty. / 100
|
|||||
 |
2
|
Nutty 0020-BRMS44012
|
4-40 X 1/2
Brass Slotted Round Head Machine Screw Box Qty. / 100 |
|||||
|
Power
|
 |
|
1
|
Digikey P157-ND
Panasonic: CR-2 |
BATT 3V LITH CAMERA - BULK PKG
|
|||
 |
|
Digikey P650-ND
Panasonic: CR-2L/BUN |
BATT 3V LITH BULK CONSUMER LABEL
|
|||||
 |
|
1
|
Digikey 522-1004-ND
B B Battery BP7-6-T2 |
BATTERY SLA 6V 7AH .250 TERM
|
||||
 |
|
Digikey P074-ND
Panasonic LC-R067R2P |
BATT SEALED LEAD ACID 6V 7.2AH
|
|||||
|
Other Passives
|
 |
|
1
|
Digikey ECS-61-18-4XEN-ND
ECS ECS-61-18-4XEN |
CRYSTAL 6.144 MHZ 18PF 49US
*** NON STOCK *** |
|||
|
|
Digikey 300-8479-ND
Citizen HC49US-6.144MABJ-UB |
CRYSTAL 6.144 MHZ 18PF HC49/US
|
|||||
 |
|
1
|
Digikey 445-5229-1-ND
TDK PS1240P02CT3 |
BUZZER PIEZO 4KHZ 12.2MM PC MNT
|
||||
 |
|
0
|
Digikey USF370-9.90M-T-5PPM-ND
Caddock USF370-9.90M-0.01%-5PPM |
RESISTOR 9.90M OHM 0.01% 0.75W
|
||||
 |
|
0
|
Digikey USF340-100K-T-5PPM-ND
Caddock USF340-100K-0.01%-5PPM |
RESISTOR 100K OHM 0.01% 0.33W
|
||||
